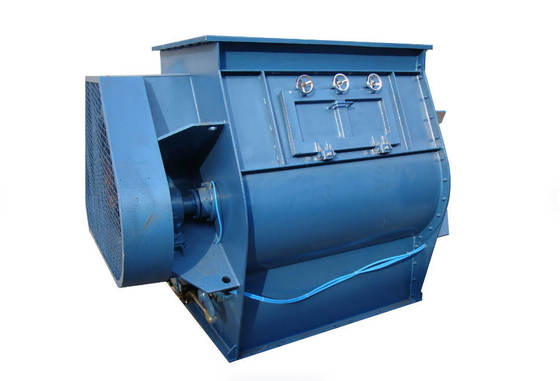

High-Efficiency Continuous Operation Horizontal Force Mixer
Horizontal power mixer is an efficient and continuous mixing equipment, widely used in chemical, building materials, food, metallurgy and other industries
Equipment structure:
The horizontal powerful mixer consists of a frame, cylinder, mixing tool, rake teeth, composite rubber lining, transmission system and control system. The transmission system is composed of hydraulic couplers, triangle belts, torque sensors, explosion-proof motors, hydraulic motors, etc.
Inspection holes are installed on both sides of the horizontal powerful mixer to facilitate operators to inspect and maintain the mixing tools in normal times. Horizontal Power Mixer is durable and easy to repair.
The shape of the mixing tool can be determined based on the mixed material, because the mixed material has different abrasion properties, material specific gravity and properties for the structural components in contact with it, and the selection of the structural parts manufacturing materials needs to be targeted.
· High-quality steel as structural material
Composite rubber lining
·Corresting carbide coating and carbide coating
·High-level alloy steel.
Features
High-efficiency mixing: adopts a horizontal cylinder design and a strong stirring device, the material is fully rolled and stirred, and the mixing efficiency is high.
Continuous operation: supports continuous feeding and discharge, ensuring the continuity and stability of the mixing process, and improving production efficiency.
Mixing: Through strong convection and shearing, high uniformity mixing of materials can be achieved, and even dispersed with trace additives.
Compact structure: small footprint, easy to connect with production lines and easy maintenance.
Multifunctionality: Some models have functions such as dispersion and granulation to meet various process needs
Product parameters of horizontal strong mixer ,Metallurgy Machine
| Model |
Output (t/h) |
Power (kw) |
Dimensions (mm) |
| L |
W |
H |
| HWQ(A)-0816 |
15-25 |
22-30 |
3415 |
1532 |
1045 |
| HWQ(A)-0918 |
30-40 |
30-45 |
4014 |
1777 |
1190 |
| HWQ(A)-1020 |
40-50 |
45-55 |
4341 |
1837 |
1330 |
| HWQ(A)-1120 |
70-80 |
75-90 |
4815 |
2137 |
1450 |
| HWO(A)-1220 |
90-110 |
110-132 |
5052 |
2168 |
1550 |
| HWQ(A)-1224 |
110-130 |
132-160 |
5099 |
3084 |
1550 |
| HWQ(A)-1330 |
150-180 |
160-220 |
6242 |
3282 |
1750 |
| HWQ(A)-1340 |
200-230 |
220-280 |
7503 |
3648 |
1750 |
| HWQ(A)-1540 |
280-330 |
280-355 |
7513 |
3848 |
1935 |
| HWQ(A)-1550 |
350-400 |
355-450 |
8588 |
4968 |
1935 |
Metallurgy Machine
Metallurgy Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
