جزئیات محصول:
پرداخت:
|
| وضعیت: | جدید | گارانتی: | 12 ماه |
|---|---|---|---|
| قطر: | 800 میلی متر | سرعت چرخش: | 1200/1500 راد در دقیقه |
| بندر: | چینگدائو چین | طبقه بندی: | تجهیزات پانسمان سنگ معدن |
| حجم: | 115 لیتر | ||
| برجسته کردن: | PGZ automatic scraper centrifuge,ore dressing scraper centrifuge,stable operation scraper centrifuge,ore dressing scraper centrifuge,stable operation scraper centrifuge |
||

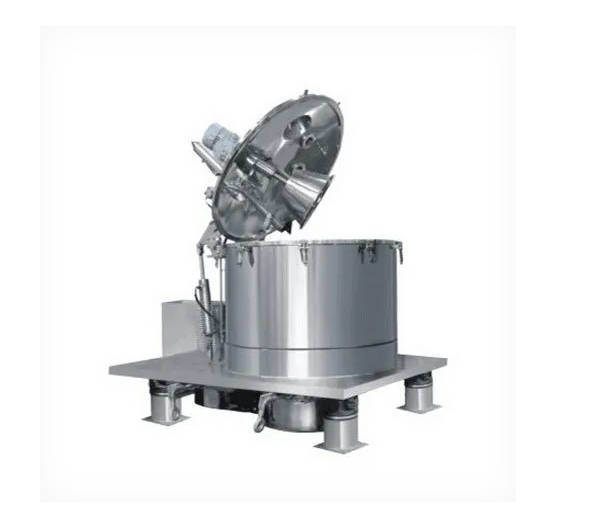

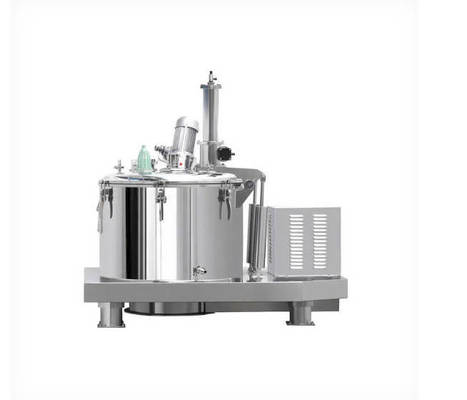

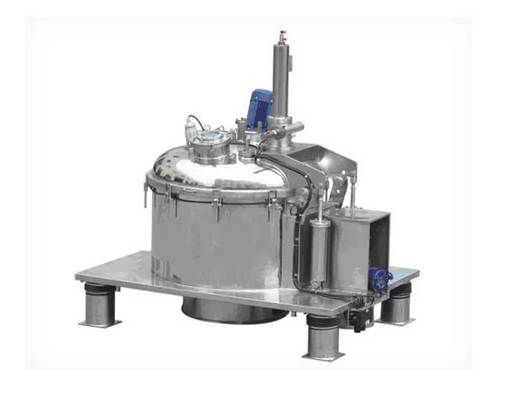

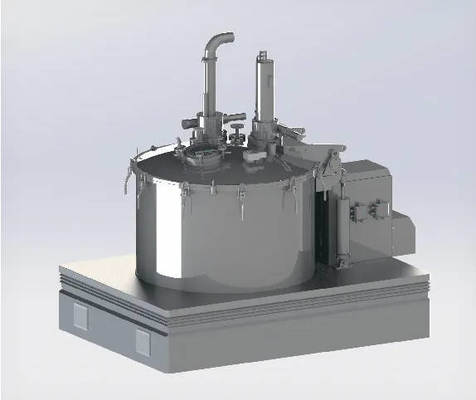

Stable Operation And Easy To Use PGZ Automatic Scraper Centrifuges
The PGZ automatic scraper centrifuge is an automated device for solid-liquid separation, mainly used in pharmaceuticals, food, and fine chemicals.
PGZ series discharges solids at the bottom by the scraper. After the rotating drum's speed is slowed down, then solid will be discharged by scraper. And all steps can be programed according to needs: feeding, washing,
dewatering, discharging etc., and can use remote control. It's features of steady running, easy operation, high-level automation, big capacity, better filtering effect etc.. The machine is suitable for solid solutions, fibers, especially for toxic and flammable materials. It's widely used for chemicals, medicines, food, light industry etc..
Product Parameters of Ore Dressing Equipment
Technical Data Of PGZ automatic scraper centrifuges
| Model | Rotating DrumCentrifugal Factor | Centrifugal Factor(w2/g) | Power(kw) | Total Weight(kg) | DimensionL*B*H(mm) | |||
| Diameter(mm) | Rotation Speed(rad/min) | Volume(L) | Material Weight(kg) | |||||
| PGZ800 | 800 | 1200/1500 | 115 | 155 | 654/1008 | 7.5/11 | 2500 | 1850*1450*2050 |
| PGZ1000 | 1000 | 1000/1200 | 175 | 250 | 560/806 | 11/15 | 3500 | 2000*1550*2150 |
| PGZ1250 | 1250 | 960/1100 | 400 | 530 | 645/770 | 18.5/22 | 5000 | 2260*1765*2350 |
Product Display of Ore Dressing Equipment
![]()
![]()
Ore Dressing Equipment
